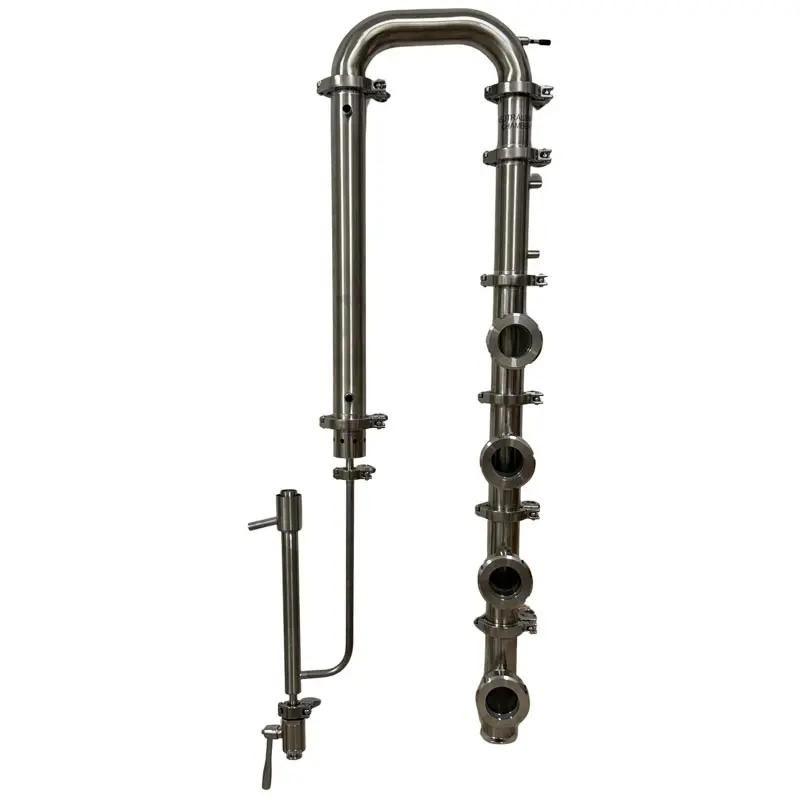

2″ Flute Column with Stainless Steel Bubble Plates and Neutralizing Chamber, 4 section. (US Made)
$599.99
Support American Made and Save Money, too!
By having a fiber optic laser welder and fiber optic laser CNC cutter for sheet and tubing we are able to manufacture these columns right here at our facility in Texas!
Our US Made 2″ Flute Distillation Column uses individual sections to allow for the greatest degree of versatility as part of a moonshine still. Run as few or as many sections as you need depending on what you are producing, the power of heat source, etc.
What makes Brewhaus’ flute distillation columns special is their modular design. The entire column comes apart for super easy cleaning, so you don’t have to try to maneuver a bottle brush up a column that’s longer than your arm. Another benefit of the modular design is that you can add a modular gin basket when needed and remove it when it’s unnecessary. This is our most flexible and powerful distillation column yet.
Brewhaus’ 4-section Flute Distillation Column includes 4 column sections (2″ in diameter) and upgraded stainless steel bubble plates in place of copper plates. The stainless steel plates are much easier to keep clean than copper plates, and are more versatile, as they are inert and therefore able to be used even when you distill something that should not come into contact with copper. To put copper into the system for those distillations that benefit from copper we include a Neutralizing Chamber filled with copper spirals.
Large 2″ diameter viewing windows allow you to see the action taking place!
Features:
- Runs in reflux mode, pot distillation mode, as an alembic distiller, or gin distiller (with optional gin basket)
- 2″ in diameter
- More than 3′ total height
- Built-in inline parrot
Includes:
- 4-section 2″ flute column with inline parrot, condenser, dephlegmator, reducer, and neutralizing chamber
- 9 Stainless steel 2″ tri-clamps with EPDM chemical tolerant gaskets
- 2 Stainless steel 1/2″ tri-clamp
- Wireless digital thermometer
| Weight | 30 lbs |
|---|---|
| Column Diameter | 2" |
| Type of Distillation | Reflux / Pot / Infusion |
| Type of System | Column Only |
| Gin Basket | Compatible |
