300L Jacketed Boiler- Stainless Steel
$3,598.00
Only 2 left in stock

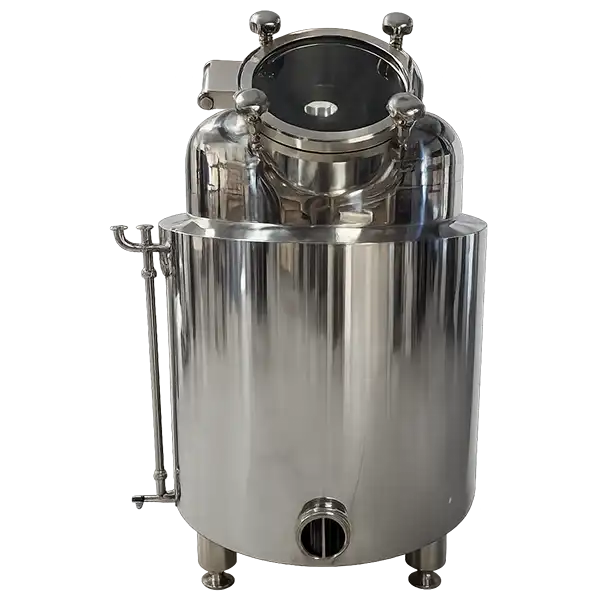

300L Jacketed Stainless Steel Distilling Boiler
Designed for serious distillers and small commercial producers, this premium 300L Jacketed Stainless Steel Distilling Boiler delivers exceptional heating performance, outstanding flexibility, and professional-grade construction. Featuring an atmospheric liquid-filled heating jacket, multiple sanitary tri-clamp connections, and heavy-duty stainless steel construction throughout, this boiler is built for years of reliable service.
Efficient Jacketed Heating
Unlike direct-fired boilers, the liquid-filled heating jacket distributes heat evenly around the kettle, reducing hot spots and improving temperature control. The jacket can be filled with water, glycol, heat transfer oil, or other suitable heat transfer fluids depending on your application.
Three 2″ tri-clamp heating element ports allow multiple electric heating elements to be installed for fast heat-up and excellent heating capacity. The atmospheric jacket design includes an external sight glass for monitoring the liquid level, a dedicated fill port with stainless steel funnel, and a vent to prevent pressure or vacuum from developing as the heat transfer fluid expands and contracts during operation.
Built for Modular Distillation Systems

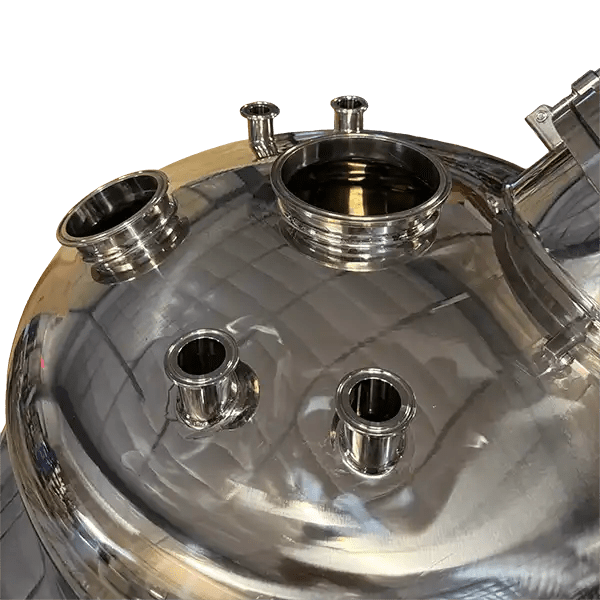

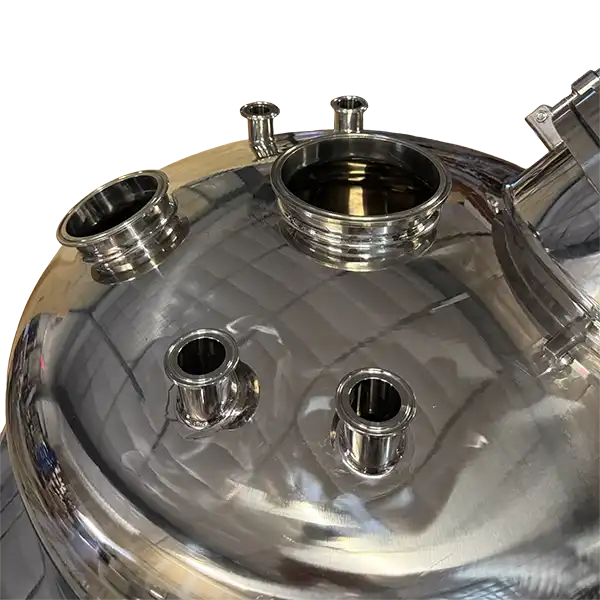

The boiler is equipped with a large 6″ tri-clamp ferrule on top for connecting modular distillation columns, making it suitable for pot still, plated column, or packed column configurations. An additional 4″ tri-clamp ferrule provides a convenient mounting point for an agitator, while four 1.5″ tri-clamp accessory ports allow installation of thermometers, CIP equipment, pressure gauges, sampling ports, or other accessories.
Easy Cleaning & Maintenance

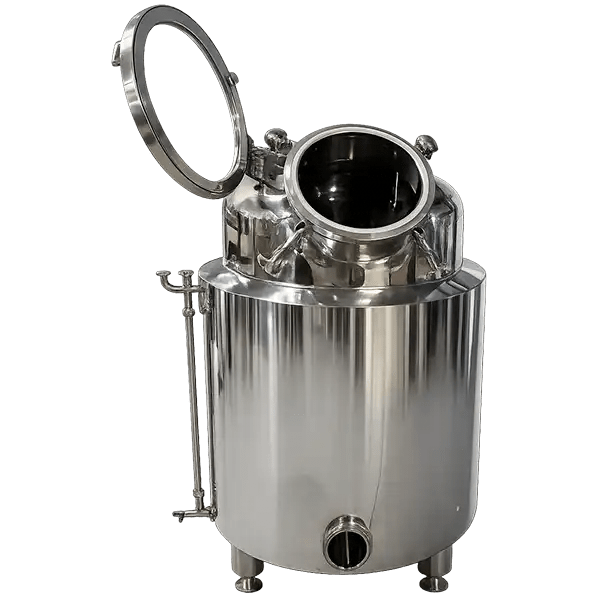

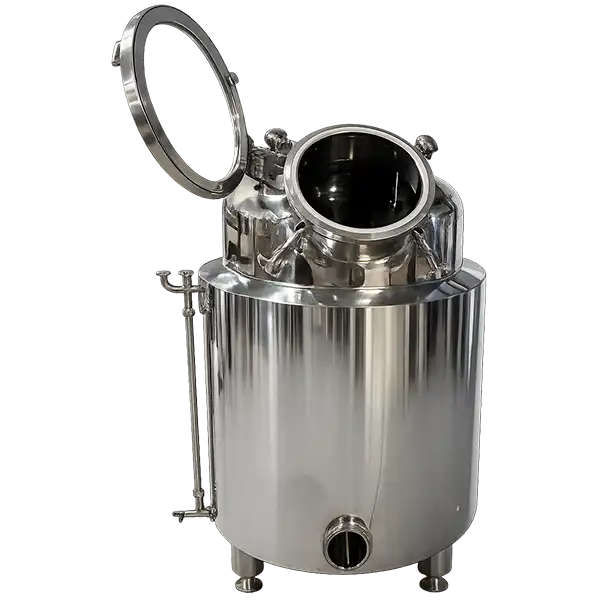

A large 10″ sanitary manway provides excellent access to the interior of the kettle for cleaning and maintenance. The smooth polished stainless steel interior is easy to sanitize and designed for years of dependable operation.

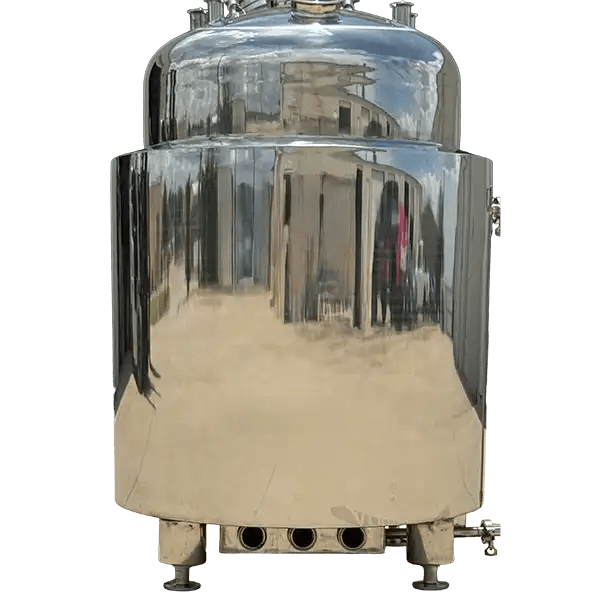

Once your run is complete, the large 4″ tri-clamp bottom drain allows the boiler to empty quickly while simplifying cleanup between batches.
Premium Features
- 300L (79.3 gallon) capacity
- Heavy-duty polished stainless steel construction
- Atmospheric liquid-filled heating jacket
- Compatible with water, glycol, heat transfer oil, and other suitable heat transfer fluids
- Three 2″ tri-clamp heating element ports
- External jacket sight glass for monitoring liquid level
- Stainless steel fill funnel for easy jacket filling
- Atmospheric vent prevents pressure or vacuum within the jacket
- 6″ tri-clamp ferrule for distillation column
- 4″ tri-clamp ferrule for optional agitator
- Four 1.5″ tri-clamp accessory ports
- Large 10″ sanitary manway
- 4″ tri-clamp bottom drain
- Heavy-duty stainless steel legs
Advantages of a Jacketed Boiler
- More even heat distribution
- Reduced risk of scorching compared to direct heating
- Excellent temperature stability
- Suitable for thicker washes and mashes
- Electric heating without direct contact between heating elements and product
- Professional sanitary design with tri-clamp connections throughout
Specifications
| Capacity | 300 Liters (79.3 U.S. Gallons) |
|---|---|
| Construction | Polished Stainless Steel |
| Heating Jacket | Atmospheric Liquid-Filled Jacket |
| Compatible Heat Transfer Fluids | Water, Glycol, Heat Transfer Oil, or Other Suitable Fluids |
| Heating Element Ports | Three 2″ Tri-Clamp Ferrules |
| Column Connection | 6″ Tri-Clamp Ferrule |
| Agitator Connection | 4″ Tri-Clamp Ferrule |
| Accessory Ports | Four 1.5″ Tri-Clamp Ferrules |
| Manway | 10″ Sanitary Manway |
| Drain | 4″ Tri-Clamp Bottom Drain |
| Jacket Level Indicator | External Sight Glass |
| Jacket Fill Port | Stainless Steel Fill Funnel |
| Applications | Distillation, Botanical Extraction, Heating & General Liquid Processing |
What’s Included
- 300L Jacketed Stainless Steel Boiler
- Atmospheric Heating Jacket
- External Jacket Sight Glass Assembly
- Stainless Steel Fill Funnel
- 10″ Sanitary Manway Assembly
Available in 200L, 250L, and 300L capacities to meet the needs of hobby distillers, pilot systems, and small commercial distilling operations.
| Weight | 396 lbs |
|---|---|
| Dimensions | 36 × 36 × 56 in |
