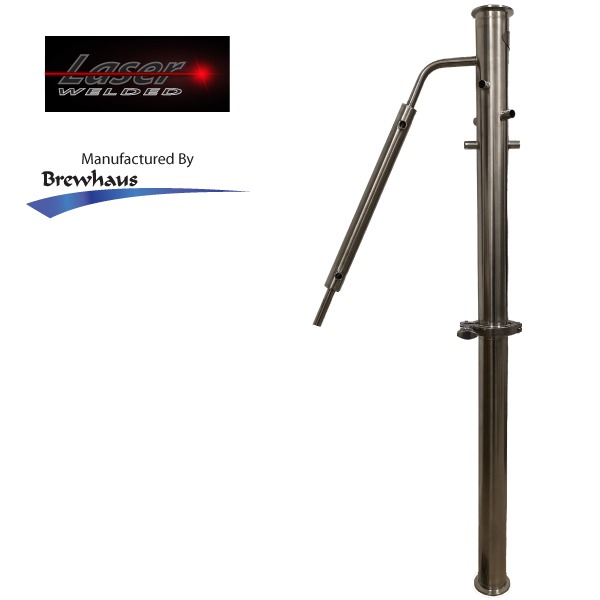

Essential Extractor PSII Moonshine Still Column

The Essential Extractor Pro Series II Moonshine Still Column can be used as either a pot distillation column or as a reflux distillation column, incorporating our Pro Series cooling system and a 2-piece column for great versatility.

The two piece column- another Brewhaus innovation- allows the top portion of the column to attach directly to the kettle, giving you a true Pot Distillation column without having to purchase another column separately. The Essential Extractor Pro Series II Moonshine Still Column also becomes a full-length distillation column that is more than 3′ long when fully assembled, which allows for true reflux operation and results in a cleaner, more pure distillate. In addition to being used as a moonshine still with copper mesh for column packing, the PSII is also perfect for distilling water or essential oils with ceramic raschig rings for column packing.

About the Pro Series’ Cooling System:
By placing the cooling lines near the top of the distillation column, reflux is created where it is intended- at the top of the tower. This allows for the most effective use of the column filling by causing the refluxed liquid to flow down through it, resulting in a cleaner distillate. Crossing the cooling lines instead of leaving them parallel results in a much more efficient cooling system, requiring less cooling water while maintaining effectiveness. And, by having the cooling system in direct contact with the rising vapor you achieve a far more efficient and effective cooling than systems that surround a column with a cooling water jacket. The slow heat transfer rate through the thick column wall is much less efficient, and concentrates all of the cooling ability around the outside of the distiller column. The result of jacketed columns is liquid channeling down the walls of the column, while not cooling the majority of the vapor as it is not in contact with the column wall. While such a system may operate faster, it is at the expense of quality. Learn more about the design of this forced reflux still here.

Features:

• Runs in reflux mode or pot distillation mode
• 2″ in diameter
• More than 3′ total height
• Made of dairy grade Stainless Steel beverage tubing
• Tri-Clamp ferrule on top of column
• Can be packed with either copper mesh for distilling alcohol, or ceramic Raschig rings for distilling water or essential oils

Includes:

• 2 piece distillation column for use as a reflux column or pot distillation column
• 2 stainless steel tri-clamps
• 2 EPDM chemical tolerant gaskets
• 1 EPDM chemical tolerant O-ring for direct keg attachment
• Pure tan gum bung
• Your choice of thermometer

*Most parts are laser welded.  For information on the benefits of laser welding click here.
